TY219 Construction Industry Efficient HF Welding Square Carbon Steel Pipe Making Machinery

1. General product information

2. Product commercial terms

3. Product introduction

• Quick Detail:

  Tube Mill、Pipe Making Machine、Pipe Production Line

• Description:

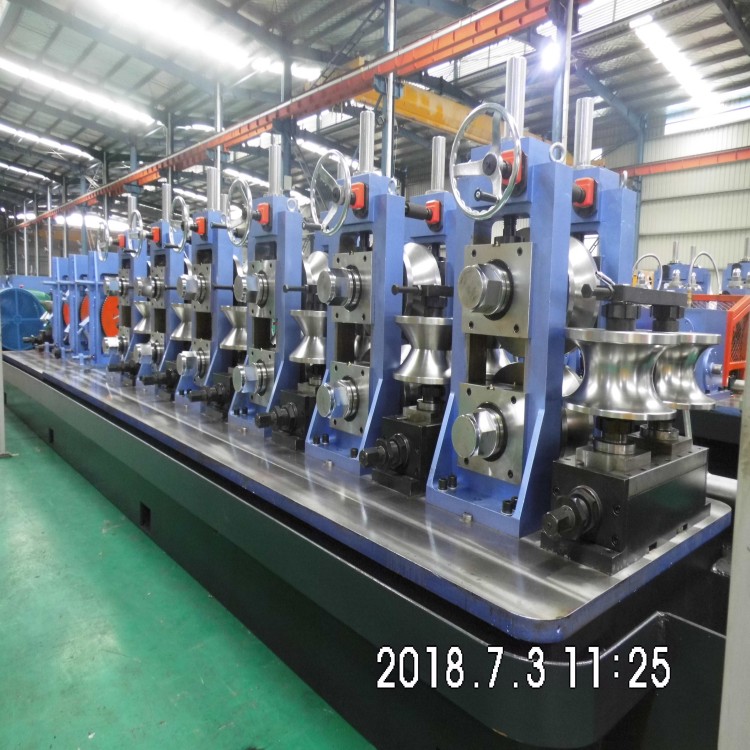

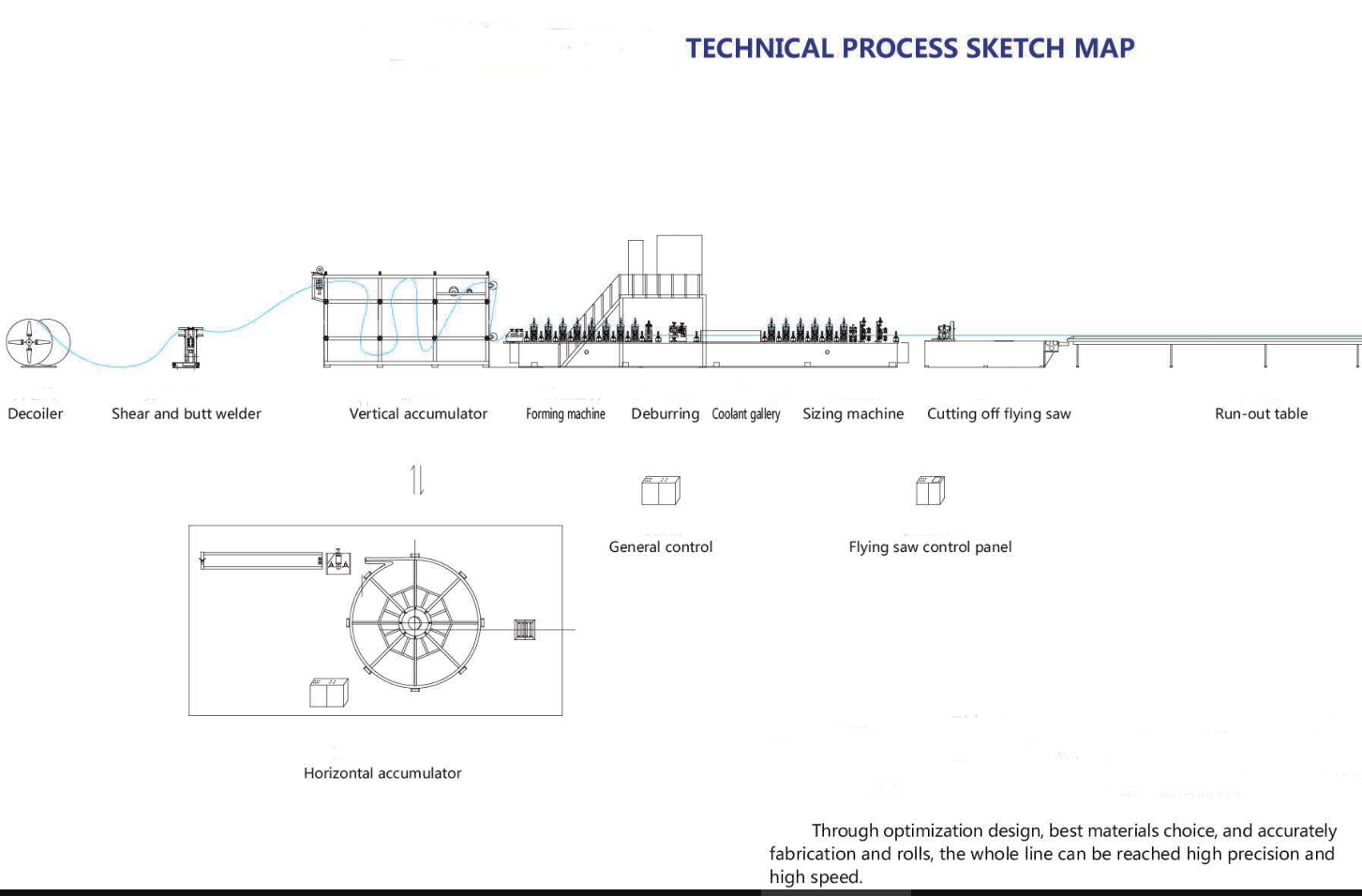

  This high-frequency welding pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe withΦ89~Φ219mm and wall thickness of 3.0~6.0mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.

• Applications:

  Electric heating tube, fridge pipe, Auto car pipe, sporting facility tube, furniture pipe, cooler pipe, pressure feeding pipe, construction pipe, configuration pipe.

• Specifications:

  	Size	Thickness
  Round pipe	Φ89mm~Φ219mm	3.0mm~6.0mm
  Square pipe	70×70mm~150×150mm	3.0mm~5.0mm
  Rectangle pipe	70×90mm~100×200mm	3.0mm~5.0mm (a:b≤2:1)

• Competitive Advantage:

  1.After-sales service :our after-sales service team have profound expertise and onsite experience. From equipment installation and commissioning to training and solving daily problems, the team provides excellent services to reassure customers and save their trouble

  2.Inspection before installation: we will check every part of the line and test machine operation to make sure it works well so you need not take much time to adjust when the machine arrive in your factory.

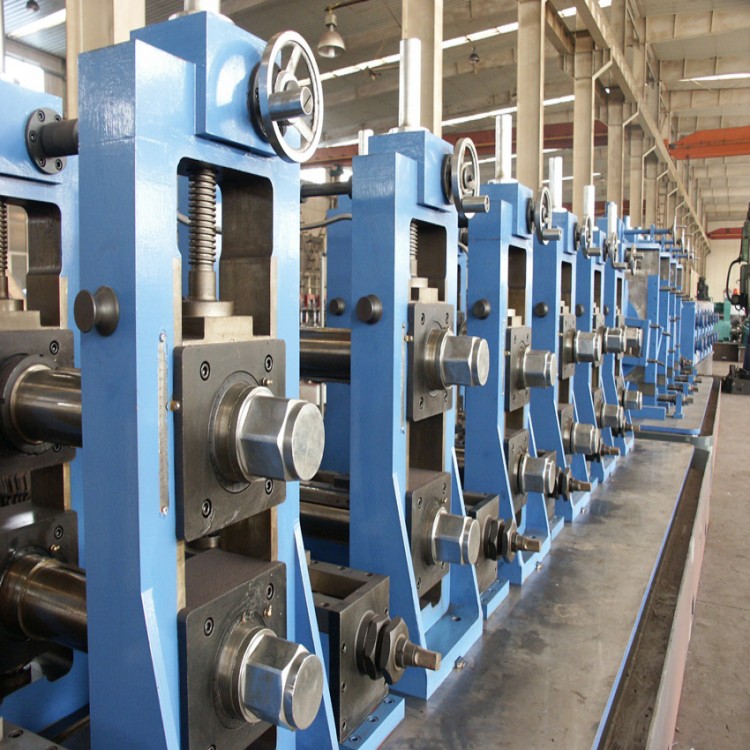

  3.Stand : our stands one-step pouring they are high tensile and high stability

  4.The run out coefficient of rollers just 1~2 silk

  5.Gearbox will test 4 hour at least about the oil leakage ,fever, and noise to insure they work well

  6.The machine tool was made by numerical control machine straightly the precision of key and groove are very high

  7.The fly saw machine tool can reduce noise and very stable

  8.Adjustment of whole line just need two wrench the specifications are unified

• Tag:

  High Quality、High Precision、Easy to Operate、Factory Export、China Supplier、Efficient
